The Air Jet system is suitable for sieving powder and dry grain products, obtaining sieving results between 5 to 4000 microns. A vacuum machine applies a controlled decrease of pressure to the chamber beneath the sieve, drawing air out of the sieve through the apertures and carrying with it any particles smaller than the sieve aperture size.
This unit will accept 200mm diameter air jet sieves.
The vacuum machine is equipped with an automatic filter cartridge cleaning system, which allows many tests before replacement is needed.
The microprocessor controlled digital keypad can be used to adjust:

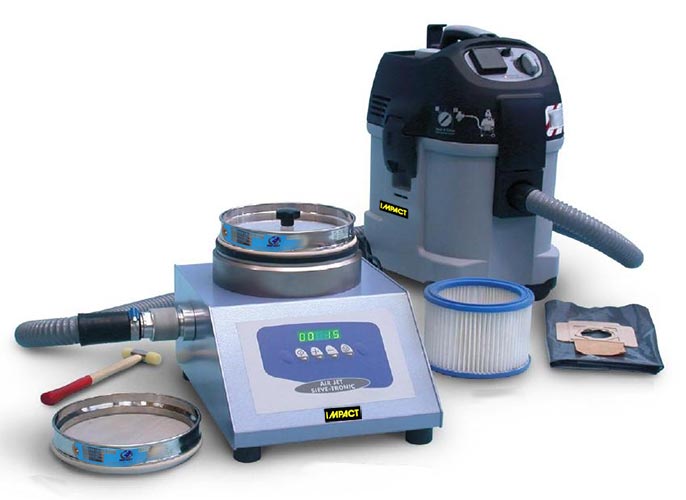

The Air Jet System is supplied complete with a vacuum machine, Plexiglass cover, filter cartridge, 5 plastic collection bags & accessories.
Please Note: Impact recommends using an SV492 'O' Ring on each of the air jet sieves, as this gives a better seal.
|Power Supply||230V 50Hz 1ph|
|Dimensions||450 x 600 x 400mm|
European Standard sieves for use with the Air Jet System.
Half Height Sieves with 200mm diameter stainless steel frames x 25mm deep, woven wire stainless steel mesh to ISO 3310/1
The 5µm, 10µm and 15µm sieves do not comply to ISO3310/1. These are non standard sieves and are therefore supplied without a certificate of conformity.
Visit the Air Jet Sieve Selector page for all Air Jet sieves from Impact.
